3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA

3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA
3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA 3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA 3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA 3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA
Informasi Dasar
Tempat asal: Cina
Nama merek: TYF
Sertifikasi: LM-80 Rohs
Nomor model: TS1-P28FA-0102BB
Kuantitas min Order: 10000
Harga: 0.013-0.018USD/PCS
Syarat-syarat pembayaran: T/T
Harga terbaik Hubungi sekarang
Informasi Detail
Menyoroti:

3v 1w 2835 SMD LED chip

,

high power 2835 LED 3000K

,

CRI90 2835 LED 235lm/W

Deskripsi Produk

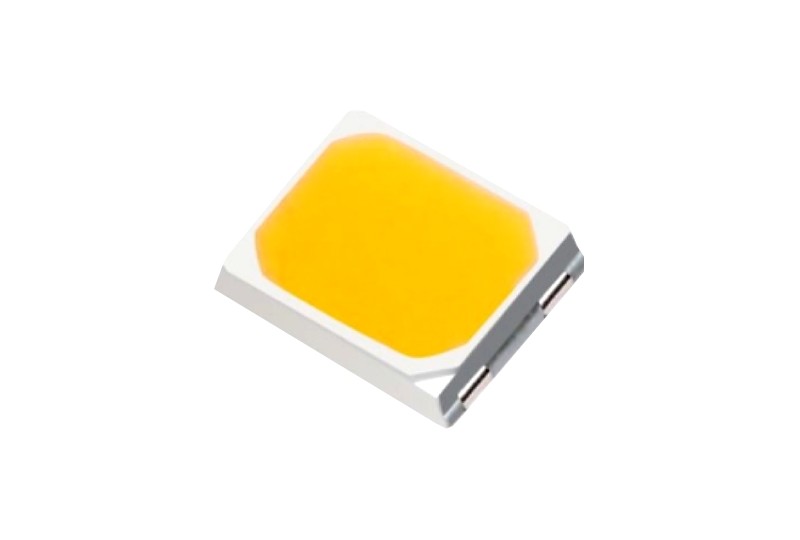

3v 1w White 2835 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 235-245lm/W @60mA
Features
  • PCT package
  • Package Dimension: 3.5mm × 2.8mm × 0.7mm
  • Viewing Angle: 120°
  • ROHS Approved
Description

The TYF 2835 package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications
Outdoor general lighting Industrial lighting Professional downlights Retrofits and fixtures High Efficacy LED Series
Technical Specifications
Parameter Value
Limiting Power 1.0 W
Forward Current IF ≦300 mA
Operating Temperature -40℃ To +85℃
Junction Temperature Tj 125 ℃
Thermal Resistance 21 ℃/W
Storage Temperature -40℃ To +105℃
ESD Sensitivity 2,000V HBM V
Reverse Voltage Reverse testing is not allowed
Reverse Current VR=5V 1uA
Soldering Temperature 260℃/3-5sec.
Moisture Sensitivity Rating MSL3 ℃/RH/H

Label:

led smd 5050,

smd led diode,

3v 1w 2835 SMD LED chip
