Rumah > Produk> smd chip yang dipimpin> 3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W

3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W

3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W
3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W 3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W 3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W 3v 1.5w White 3030 SMD LED Chip High Power 3000K 4000K CRI70 CRI80 CRI90 210-220LM/W
Informasi Dasar
Tempat asal: Cina
Nama merek: TYF
Sertifikasi: LM-80 Rohs
Nomor model: TS1-E30FL-0202BB
Kuantitas min Order: 20000
Harga: 0.034-0.04
Syarat-syarat pembayaran: T/T
Harga terbaik Hubungi sekarang
Informasi Detail
Menyoroti:

3v 3030 SMD LED chip

,

high power 3030 LED

,

CRI90 3030 LED chip

Deskripsi Produk

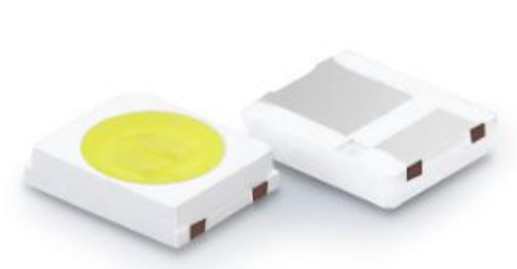

3V 1.5W White 3030 SMD LED Chip High Power 3000K-4000K CRI70/80/90 210-220LM/W
Key Features
  • EMC package
  • Package Dimension: 3.0mm × 3.0mm × 0.60mm
  • Viewing Angle: 120°
  • ROHS Approved
Product Description

The TYF 3030 package offers high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.

Applications
Outdoor general lighting Industrial lighting Professional downlights Retrofits and fixtures
Technical Specifications
Limiting Power: 1.5 W
Forward Current: IF ≦250 mA
Operating Temperature: -40℃ to +85℃
Junction Temperature: 125℃
Thermal Resistance: 15℃/W
Storage Temperature: -40℃ to +105℃
ESD Sensitivity: ESD 2,000V HBM
Reverse Voltage: Reverse testing is not allowed
Reverse Current: VR=5V 1uA
Soldering Temperature: 260℃/3-5sec
Moisture Sensitivity: MSL3 ℃/RH/H

Label:

led smd 5050,

smd led diode,

3v 3030 SMD LED chip
