36v 6-36W two color tunable RA90 5SDCM 2700K-6000K

36v 6-36W two color tunable RA90 5SDCM 2700K-6000K
36v 6-36W two color tunable RA90 5SDCM 2700K-6000K 36v 6-36W two color tunable RA90 5SDCM 2700K-6000K 36v 6-36W two color tunable RA90 5SDCM 2700K-6000K 36v 6-36W two color tunable RA90 5SDCM 2700K-6000K
Informasi Dasar
Tempat asal: Cina
Nama merek: TYF
Sertifikasi: LM-80 Rohs CE CB
Nomor model: TB1307-1202F4
Kuantitas min Order: 500
Harga: 0.3-1.4usd/pcs
Syarat-syarat pembayaran: T/T
Harga terbaik Hubungi sekarang
Informasi Detail
Menyoroti:

36V dimmable COB LED

,

tunable COB LED 2700K-6000K

,

5SDCM high CRI COB LED

Deskripsi Produk

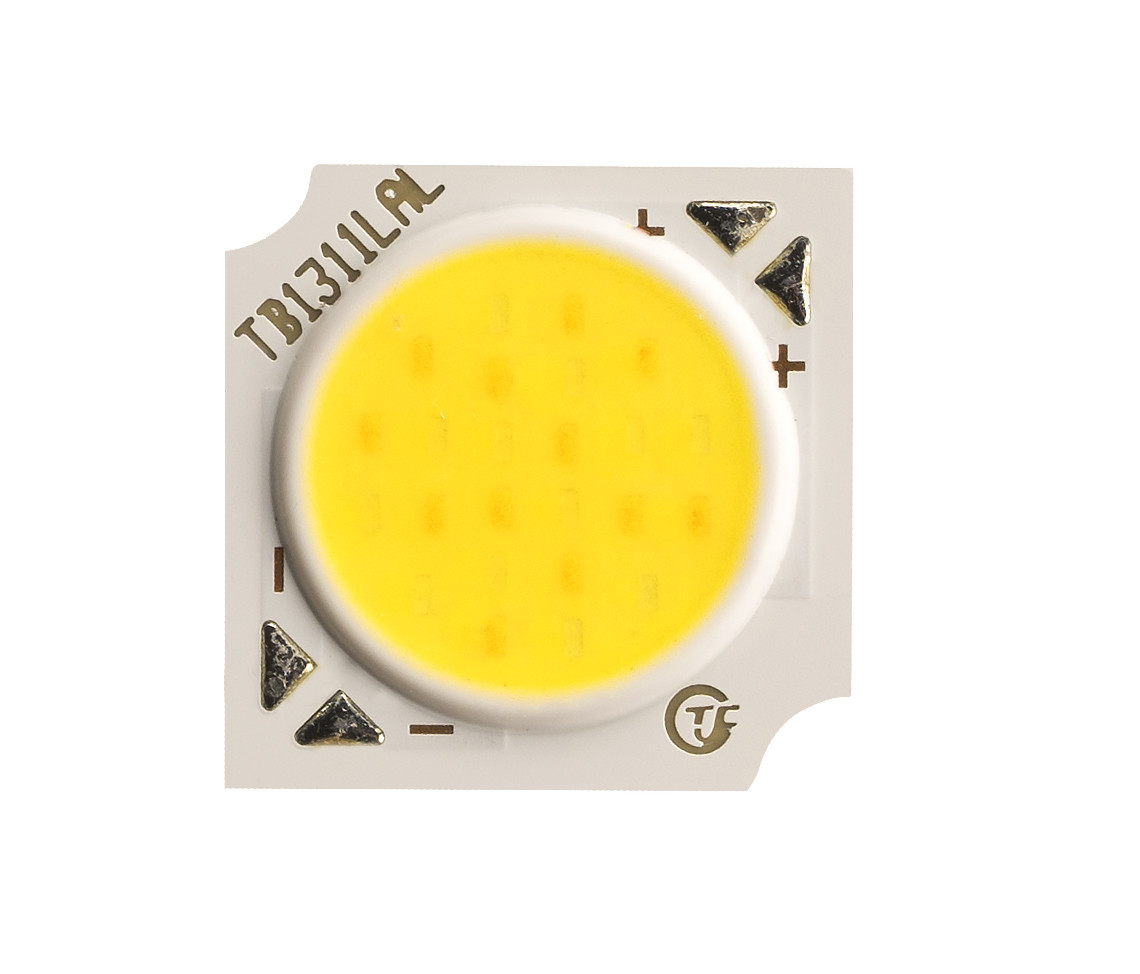

36V 6-36W Two Color Tunable RA90 5SDCM 2700K-6000K LED Package

Package Dimension: 13.35mm × 13.35mm × 1.2mm

Viewing Angle: 120°

ROHS Approved

The TYF 1307 Double Color package features high efficacy, high Ra, low power consumption, wide viewing angle, and a compact form factor. These characteristics make it an ideal LED solution for various lighting applications.

Applications
  • Commercial lighting
  • Home furnishing lighting
  • Intelligent lighting
Absolute Maximum Ratings
Limiting power
8*2 W
Forward Current (IF)
≦200mA
Operating Temperature
-40ºC to +105ºC
Junction Temperature
125°C
Storage Temperature
-40ºC to +105ºC
ESD Sensitivity
2,000V HBM
Reverse Voltage (VR)
Reverse testing is not allowed
Reverse Current (IR)
VR=5V 1uA
Soldering Temperature
350ºC/3-5sec.
Moisture Sensitivity Rating
MSL3
